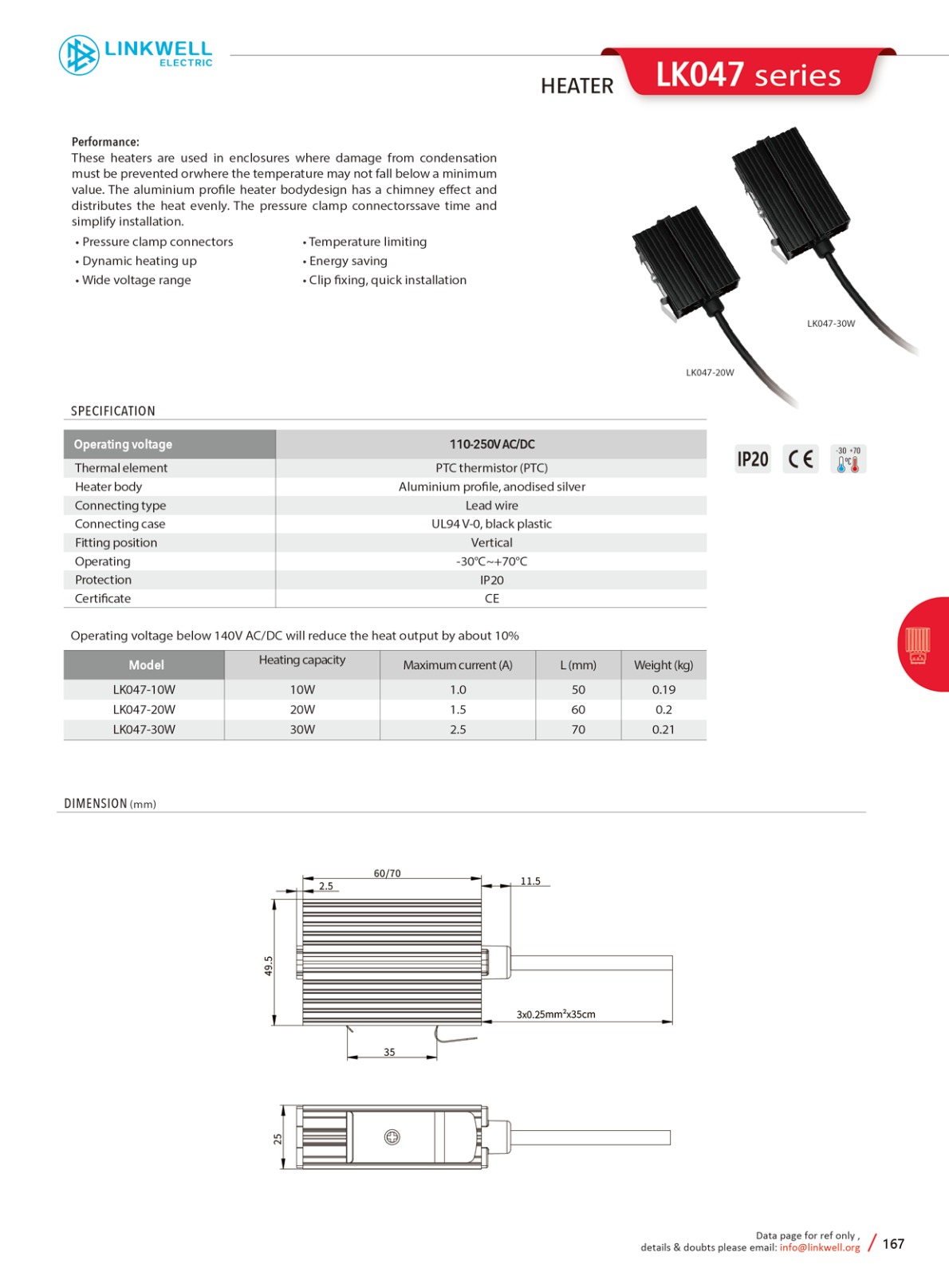

Performance:
These heaters are used in enclosures where damage from condensation
must be prevented orwhere the temperature may not fall below a minimum
value. The aluminium profile heater bodydesign has a chimney effect and
distributes the heat evenly. The pressure clamp connectorssave time and
simplify installation.
| type | PTC Heater | power source | Electric |
| voltage | 220 V | material | Aluminum |
| warranty | 1 Year | Heating capacity | good |
| place of origin | Jiangsu, China | Weight (KG) | 0.3 |
| brand name | LINKWELL | Thermal element | PTV self-adjusting and temperature limiting |
| Material | Aluminum | Electrical connection | 3-position crimping terminal, Standard wire 0.5-2.5mm2 |
| Connection mode | UL94V-0, black plastic | Operating voltage | 110-250V AC/DC |
| Install | Vertical | Operating/Storage temperature | -45-+70℃ |
| Protection | IP20 | Certificate | CE |
