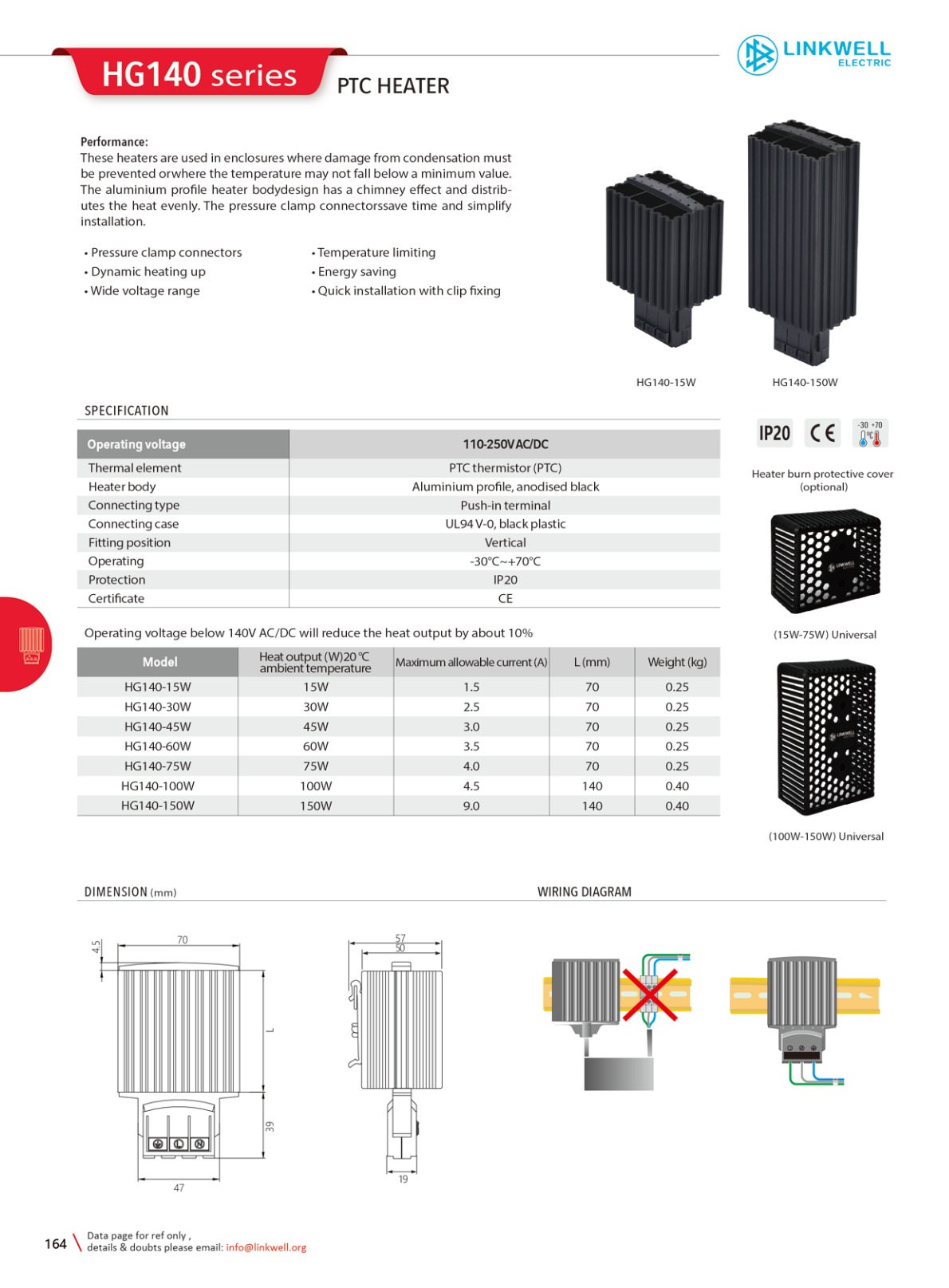

Performance:

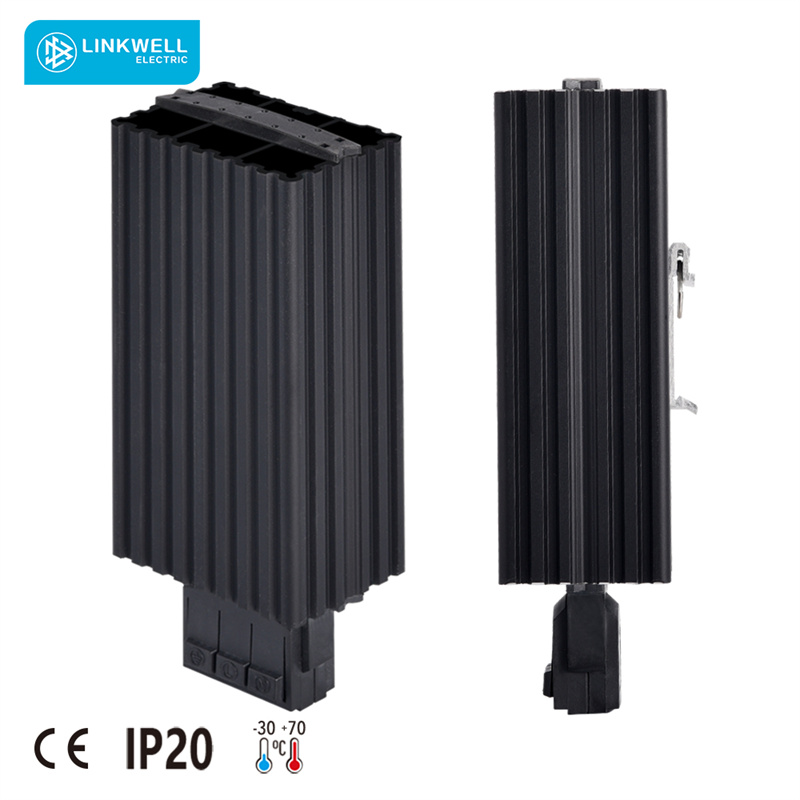

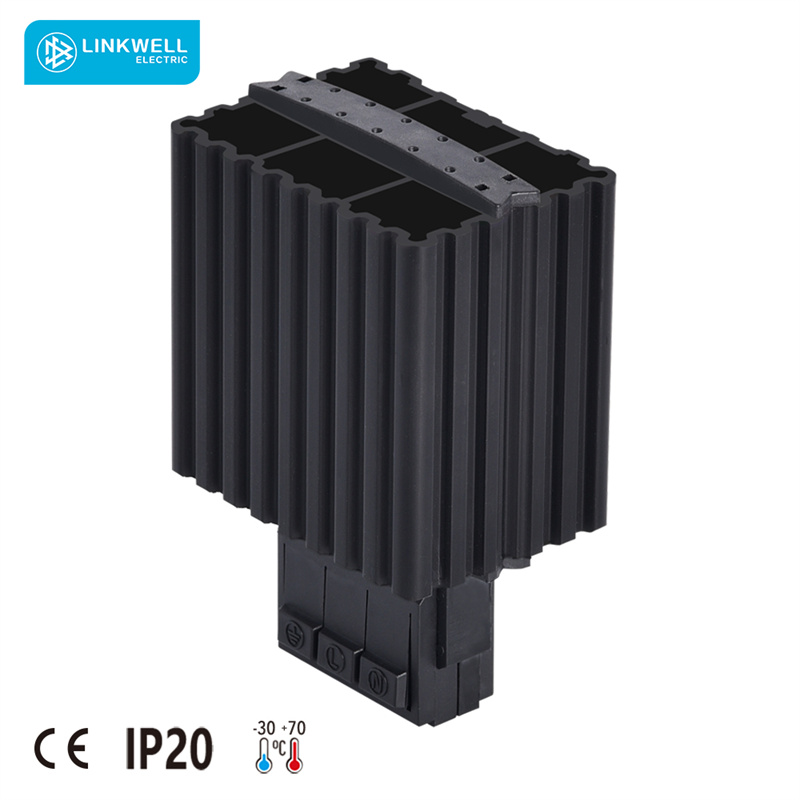

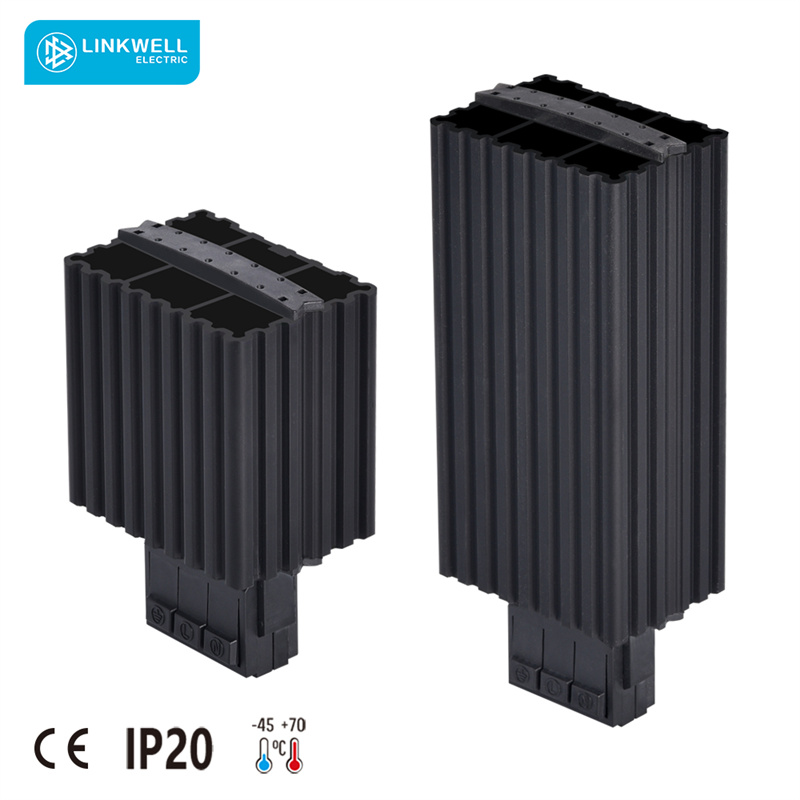

These heaters are used in enclosures where damage from condensation must
be prevented orwhere the temperature may not fall below a minimum value.
The aluminium profile heater bodydesign has a chimney effect and distrib-
utes the heat evenly. The pressure clamp connectorssave time and simplify
installation.
| type | PTC Heater | power source | Electric |
| voltage | 230 V | material | Plastic |
| warranty | 1 Year | machinery test report | Provided |
| video outgoing-inspection | Provided | Heating capacity | 15W, 30W, 45W, 60W, 75W, 100W, 150W |
| place of origin | Jiangsu, China | Weight (KG) | 0.25 |
| brand name | LINKWELL | working temperature range | -30 - 70 |
| Operating voltage | 110-250VAC/DC | Thermal element | PTC thermistor (PTC) |
| Heater body | Aluminium profile, anodised black | Connecting type | Push-in terminal |
| Connecting case | UL94 V-0, black plastic | Fitting position | Vertical |
| Operating | -30°C~+70°C | Protection | IP20 |
| Certificate | CE | ||
