Home > Product > Heating & Climate controls > Thermostat Hygrostat

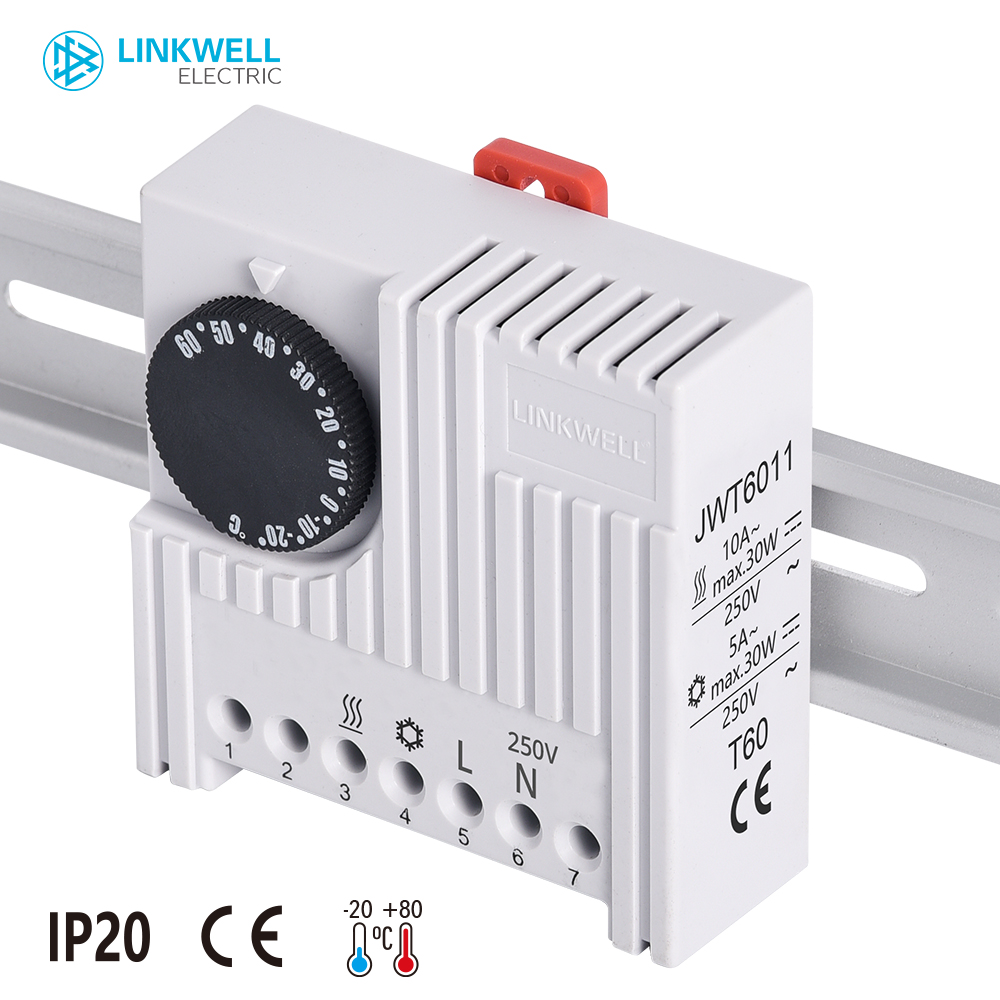

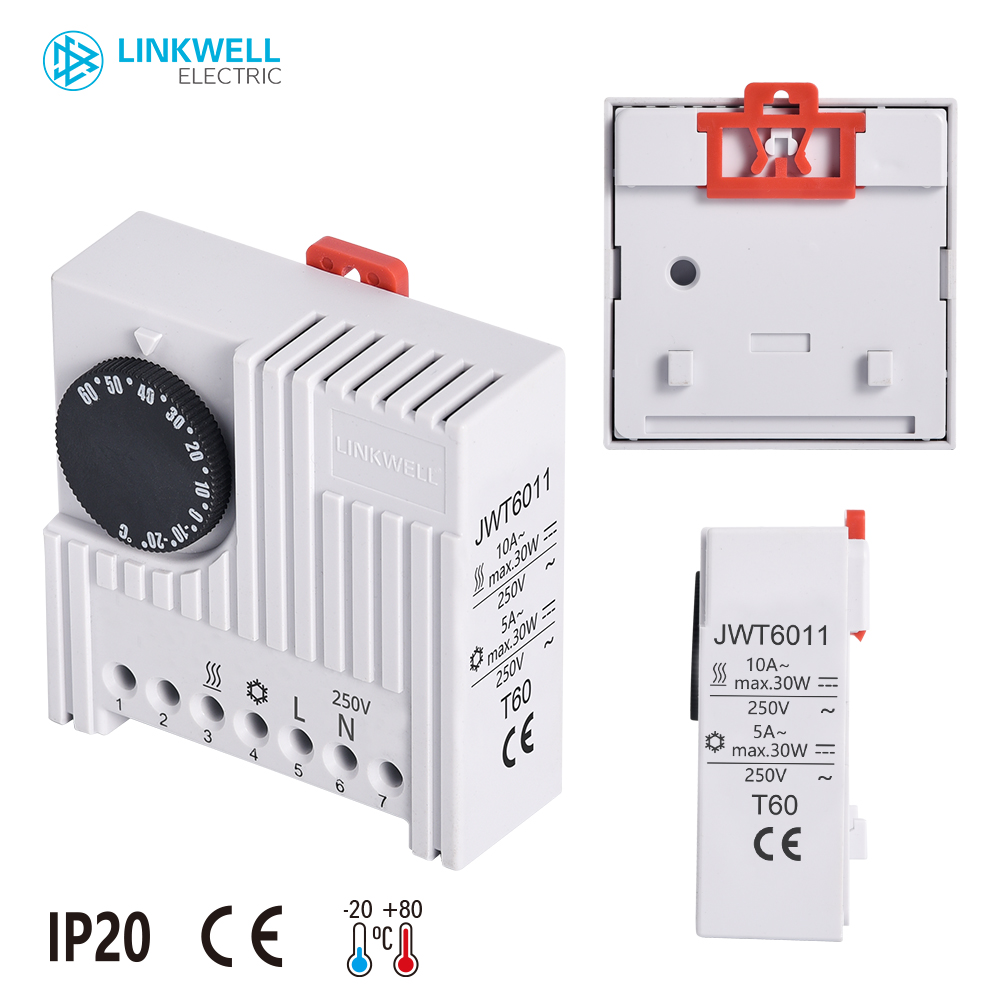

This temperature regulator is ideal for controlling filter fans, heaters, and heat
exchangers. It can also serve as a signal generator for monitoring the internal
temperature of control cabinets.
Performance & Specifications
Sensing Element: Thermistor
Contact: Single-pole changeover, quick-break

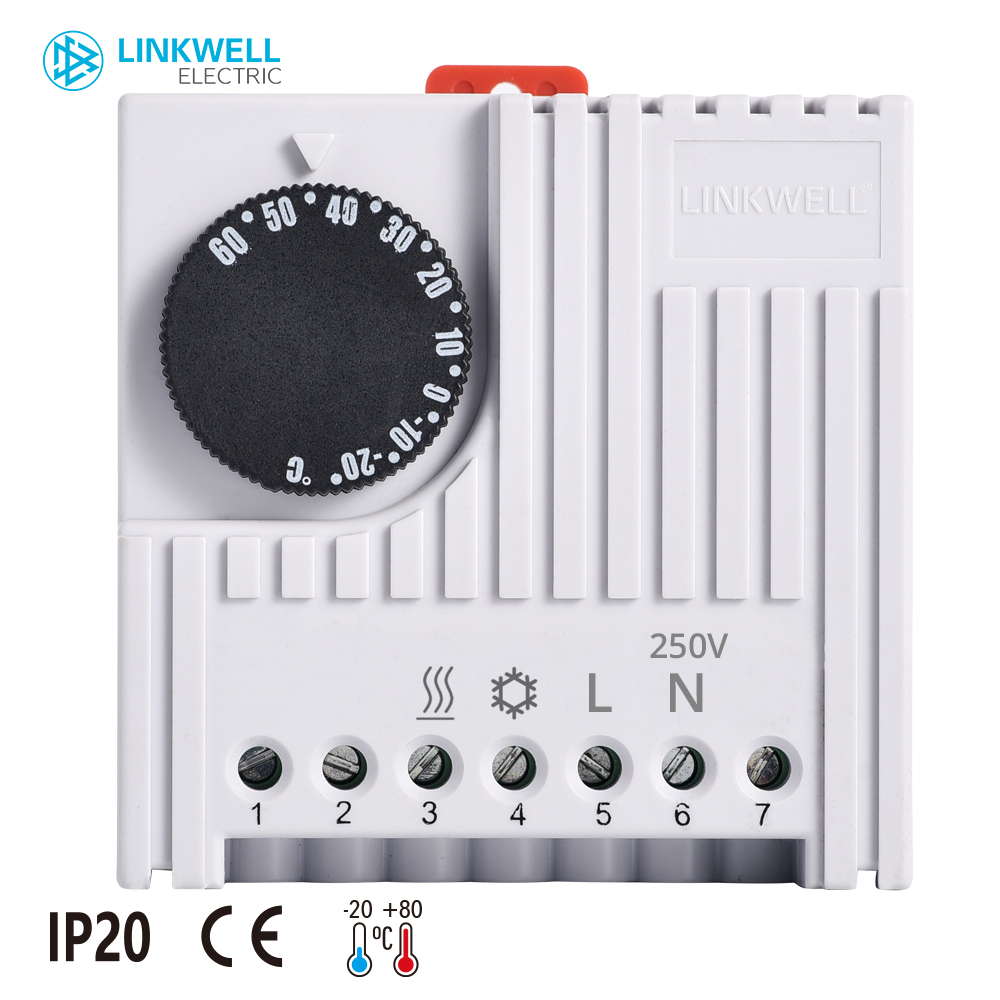

Wiring: Front-access terminal blocks

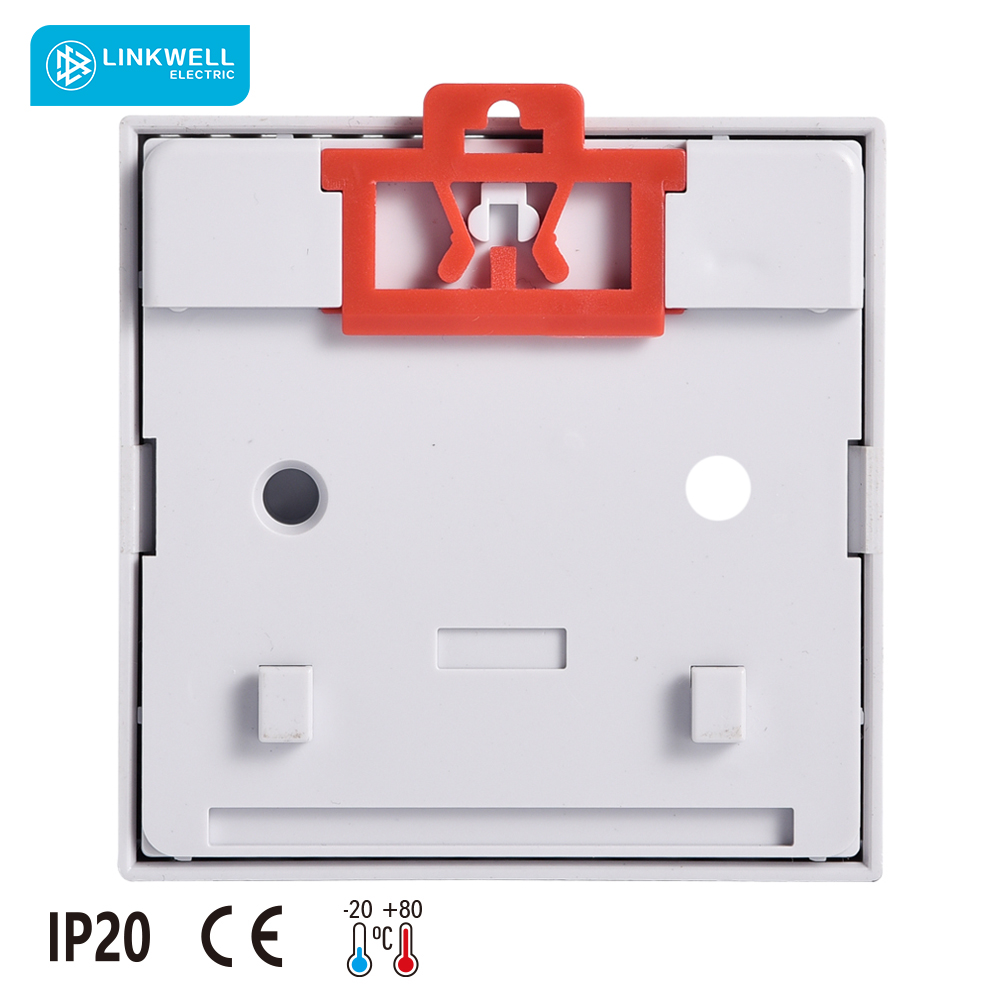

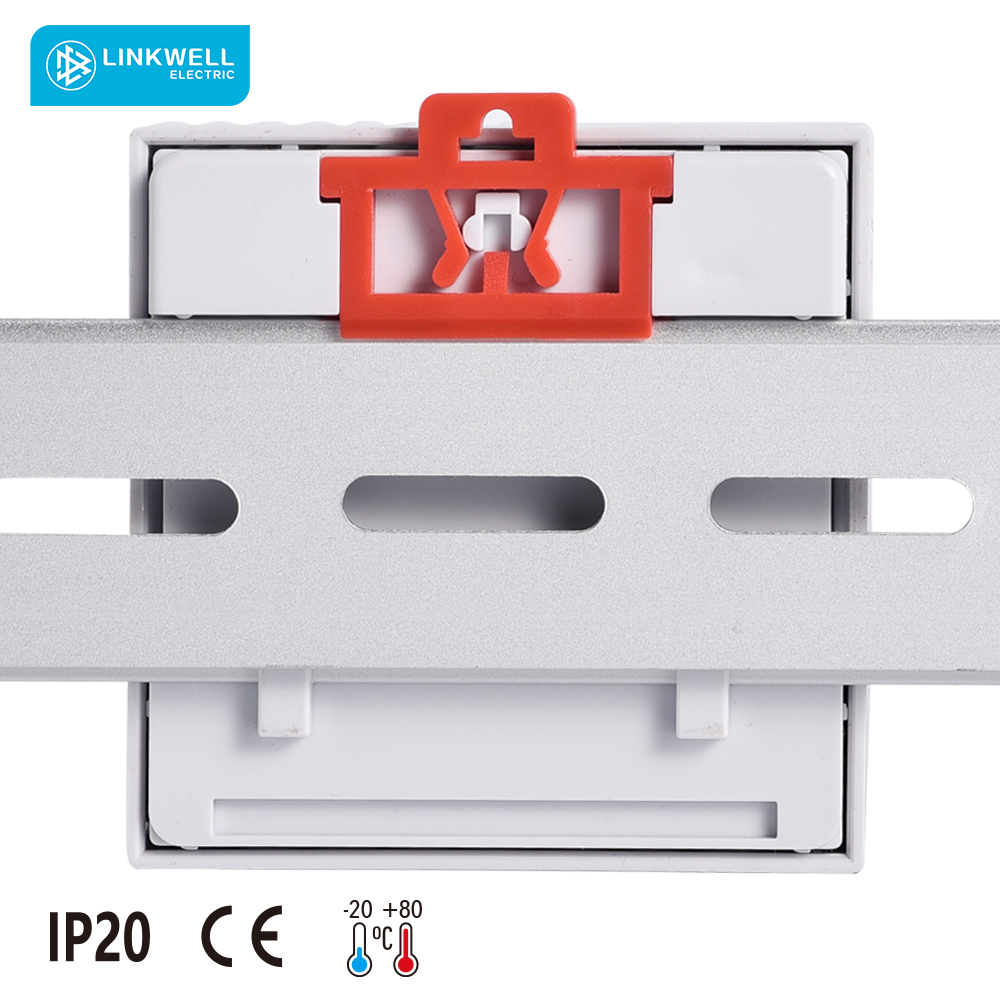

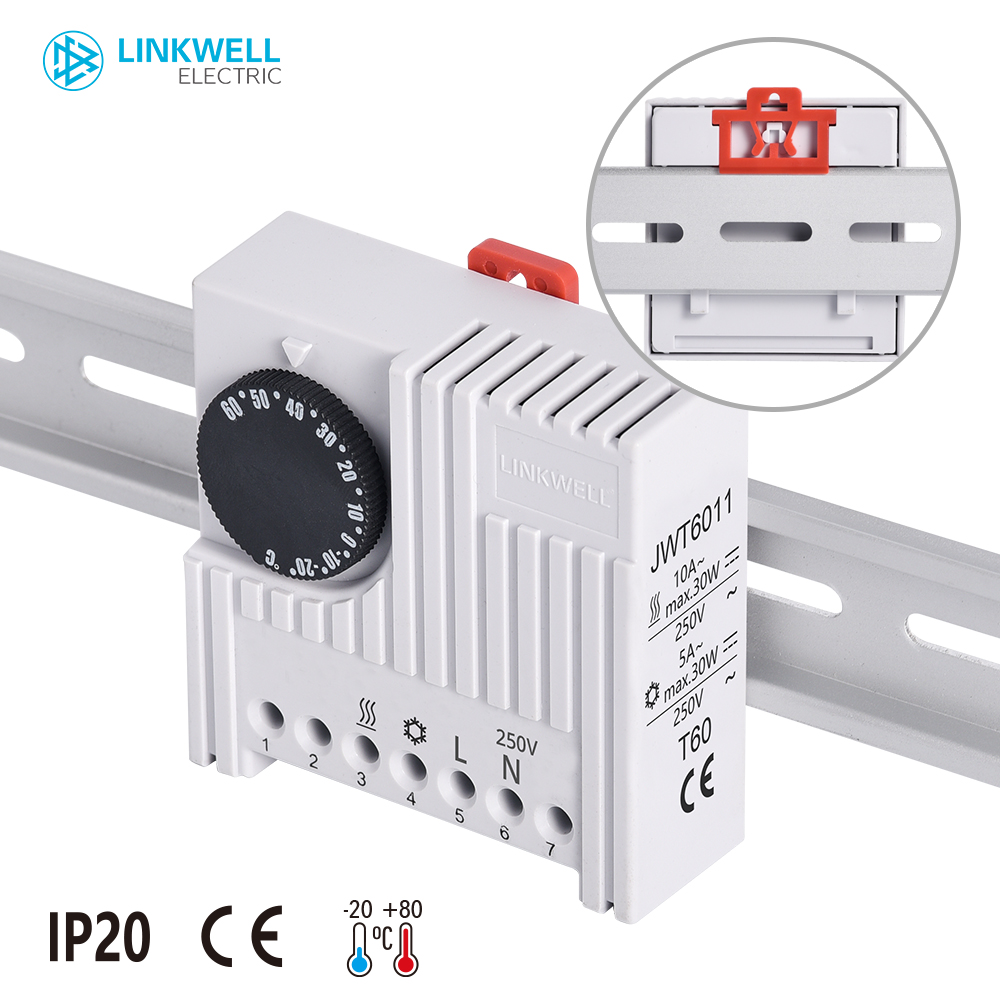

Mounting: Vertical/horizontal 35mm DIN rail mount (EN 60715); optional clip
adapter for TS/35 cabinet rails
| type | Temperature Controller | Temperature Resolution | 0.1°C |
| IP Rating | IP20 | Display Type | No Display |
| Communication Interface | NO | warranty | 1 year |
| customized support | OEM, ODM, OBM, Software Reengineering | model number | JWT011 |
| place of origin | Jiangsu, China | brand name | LINKWELL |
| Temperature range | 0-+60℃ | Switch temperature difference | 7K(+/-4K tolerance) |
| Contact type | Snap-action | Contact resistance | <10m |

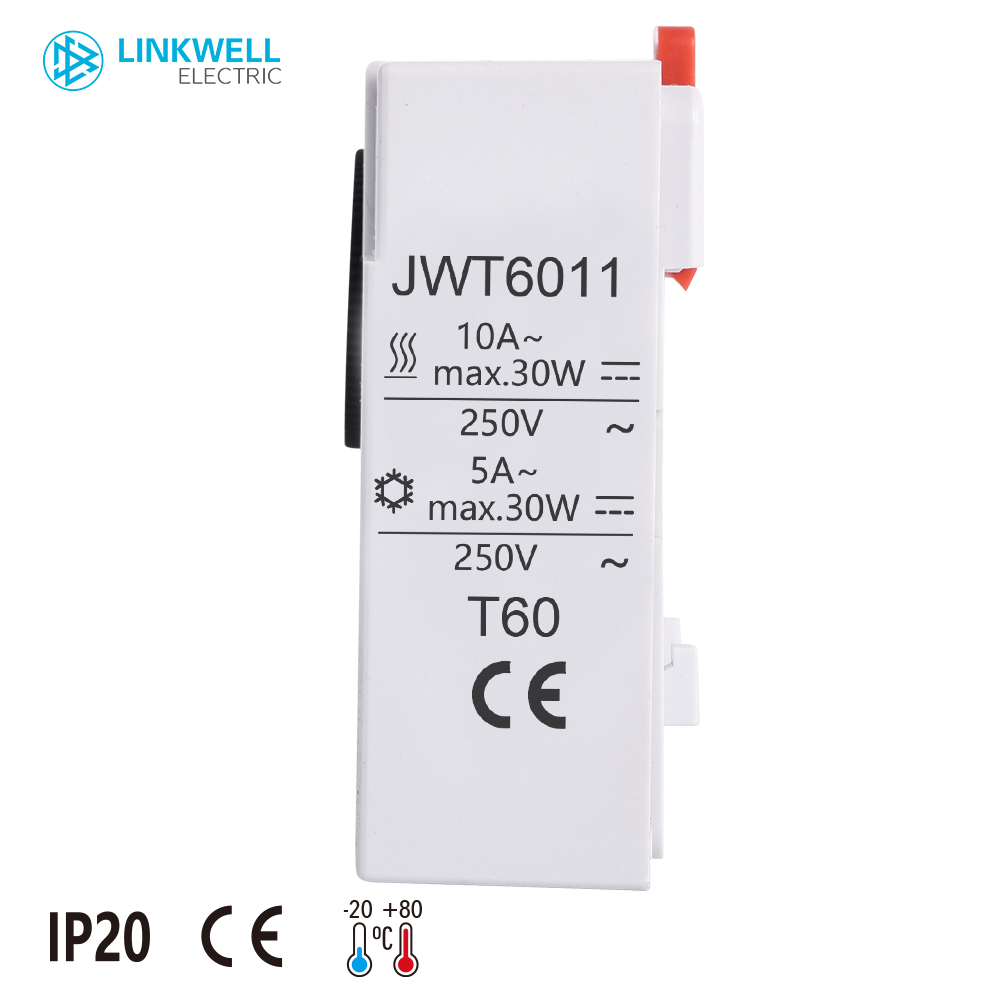

| Service life | >100.00cycles | Max.Switching capcky | 250VAC,10(2)A, |
| Connection | 2-pole terminal | Casing | plastic according to UL94V-0,light grey |
| Installation | 35mm DIN Installation guide | Dimensions | 64*33*44mm |
